Tensile Testing Machine

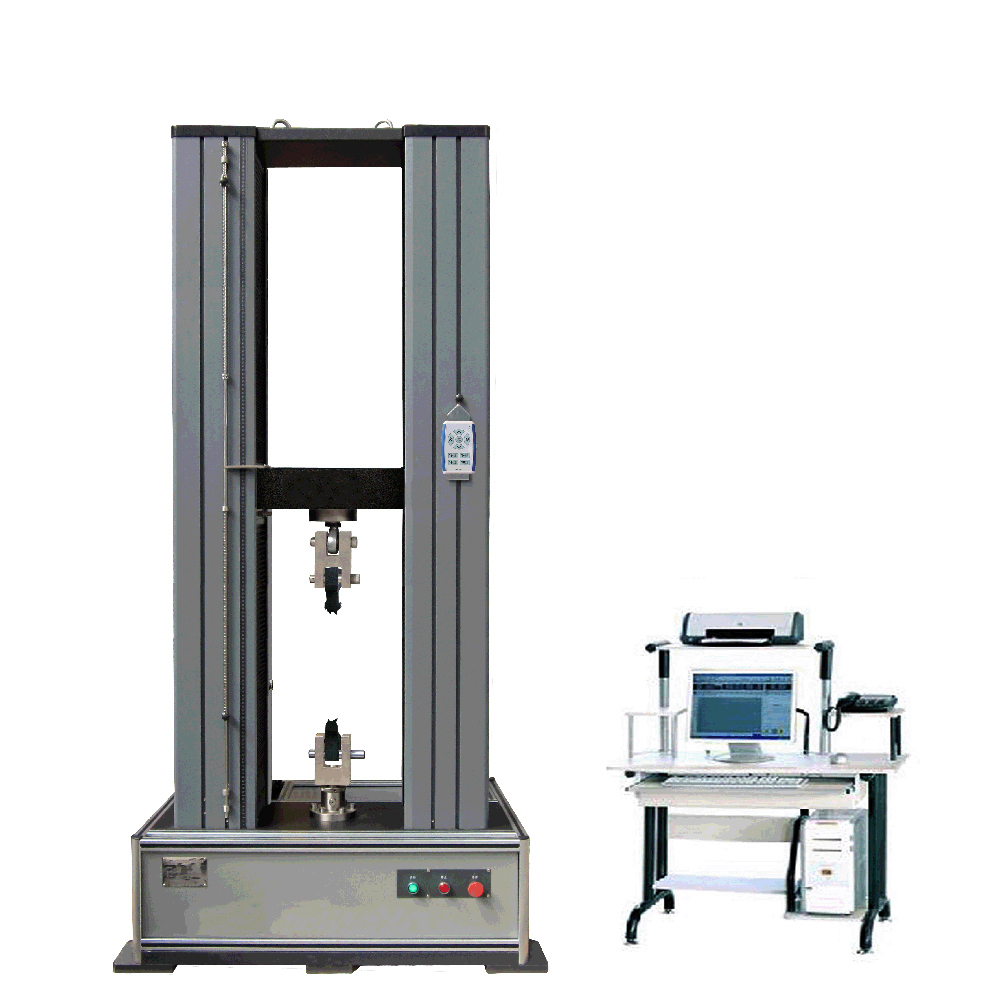

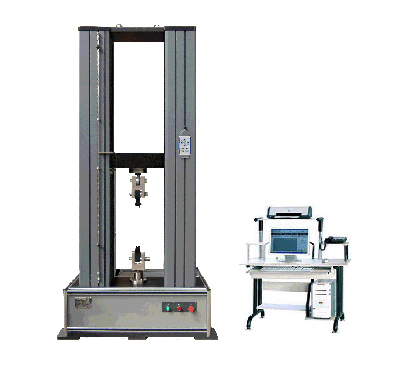

TBTHST-D50 Tensile Testing Machine

TBTHST-D50 tensile testing machine is used in tensile, impact tests for HDPE butt-fusion pipes at high speed in room temperature. It is also suitable for high speed tests on other materials.

Our tensile testing machine must comply with standard ASTM F2634-2010, Standard Test Method for Laboratory Testing of Polyethylene (PE) Butt Fusion Joints using Tensile-Impact Method.

Technical Parameters
No. Item Specification
1 Tensile impact load 50kN
2 Grade/class Class 0.5
3 Measuring range of load 0.4%-100%FS
4 Relative error of indication ±0.5%
5 Load resolution 1/±300000FS
6 Measuring range of deformation 0.2%-100%
7 Tensile impact test speed 15m/min
8 High speed tensile impact starting time ≤2.0s
9 High speed tensile impact stop time ≤2.0s
10 High speed tensile impact speed accuracy ≤±0.5%
11 Tensile impact position resolution at high speed 0.033μm
12 Accuracy of high speed tensile and impact load ≤±0.5%
13 Control method Computer control
14 Working voltage 1ph, 220V 50Hz
15 Weight Approx. 400kg
TBTHST-D50 Tensile Testing Machine

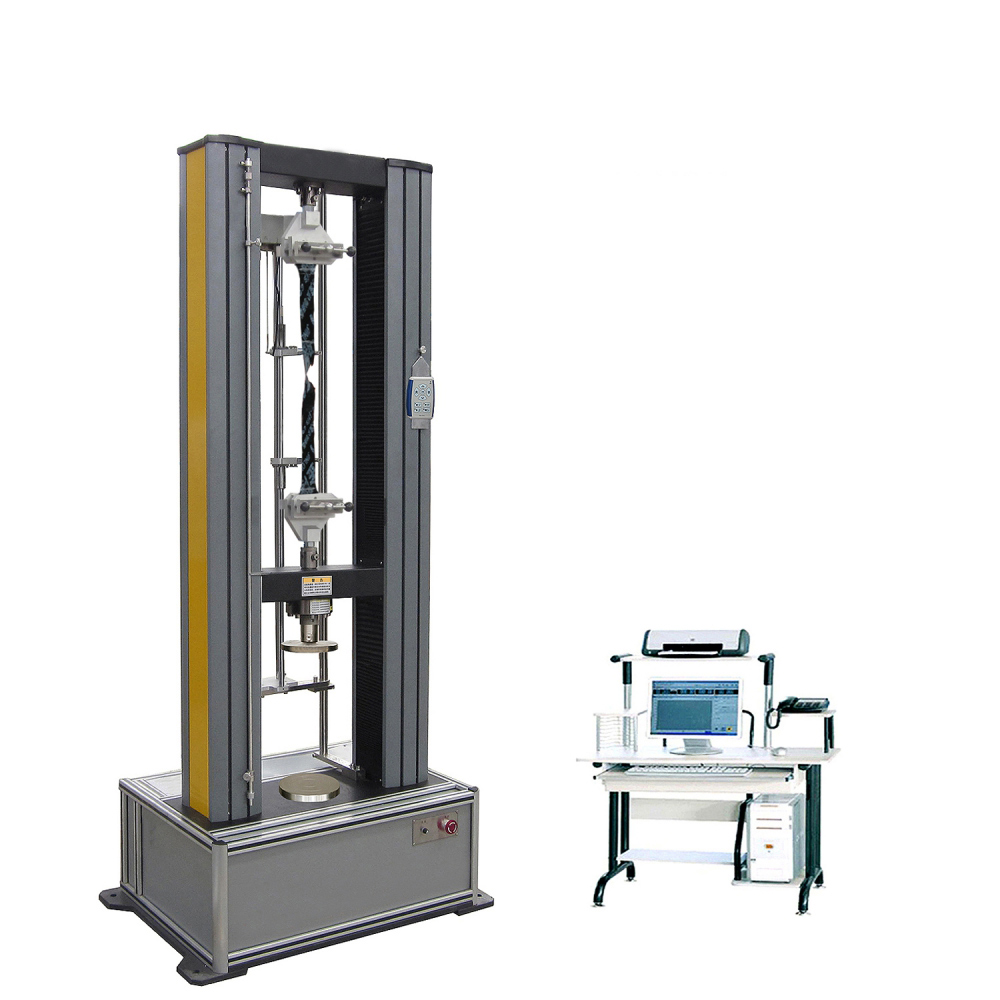

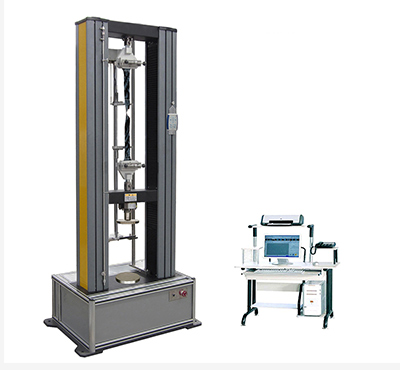

TBTWDW-G Series of Membrane Tensile Testing Machine

TBTWDW-G series of membrane tensile testing machine is used in tensile test, tearing test, peeling test, and shearing test for building waterproofing membrane, asphalt, bitumen and polymer membrane, elastomer modified asphalt waterproofing materials (SBS) and so on.

Technical Parameters
  • Max. load capacity: 2kN/5kN/10kN/20kN
  • Load accuracy: class 0.5
  • Measuring range of load: 0.4%-100%
  • Relative error of indicating value: ±0.5%
  • Speed adjusting range of displacement: 0.001-500mm/min
  • Stroke of crosshead: 1200mmm
  • Measuring range of large extensometer: 10-1000mm
  • Working voltage: 220V, 50Hz
  • Motor power: 400W
  • Dimension (LxWxH): 730x500x1900mm
TBTWDW-G Series of Membrane Tensile Testing Machine
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
